Bracket
- Commodity name： Bracket
| Details
- 产品描述
-
Products Name Bracket Common specifications Electrogalvanizing or hot-dip galvanizing Packing Conventional pallet packaging, can be customized Minimum order quantity 500 Delivery time It can produce 200,000 units per month Port of shipment Tianjin After-sales service the company has a sound service policy, return worry-free Note Support customization Gas pipe support

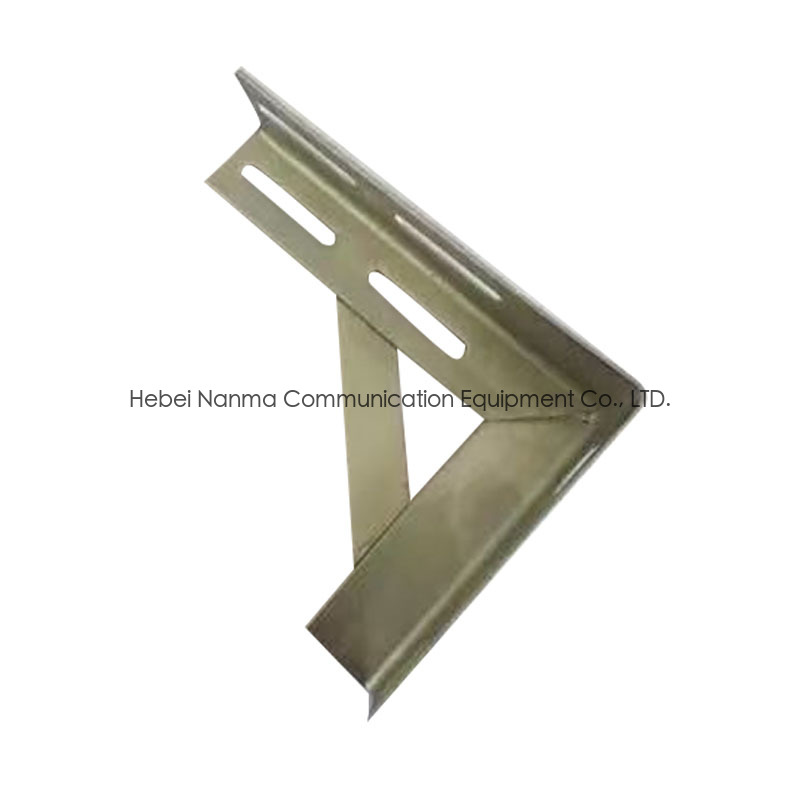

Number Name Specification Surface treatment Material Weight (KG) Thickness (MM) 1 Triangular support 100*100*30 Galvanize Q195B 0.1-0.2 2-2.6 2 Triangular support 100*120*30 Galvanize Q195B 0.1-0.2 2-2.6 3 Triangular support 100*150*30 Galvanize Q195B 0.15-0.25 2-2.6 4 Triangular support 100*150*30 Galvanize Q195B 0.15-0.25 2-2.6 5 Triangular support 150*150半30 Galvanize Q195B 0.2-0.3 2-2.6 6 Triangular support 150*150年40 Galvanize Q195B 0.3-0.4 2-2.6 7 Triangular support 150*200*30 Galvanize Q195B 0.25-0.35 2-2.6 8 Triangular support 150*200*40 Galvanize Q195B 0.35-0.45 2-2.6 9 Triangular support 150*250*40 Galvanize Q195B 0.4-0.5 2-3 10 Triangular support 200*200*40 Galvanize Q195B 0.4-0.5 2-3 11 Triangular support 200*250*40 Galvanize Q195B 0.4-0.5 2-3 12 Triangular support 200*300*40 Galvanize Q195B 0.55-0.65 2-3 13 Triangular support 250*250*40 Galvanize Q195B 0.6-0.7 2.5-3 14 Triangular support 300*300*40 Galvanize Q195B 0.8-0.9 2.5-3 15 Triangular support 300*400*40 Galvanize Q195B 0.95-1.05 2.5-3 16 Triangular support 300*500*40 Galvanize Q195B 1-1.1 2.5-3 The weight is within the marked range, and the manual measurement error of thickness is ±0.2mm. Product display
Installation procedure
Step 1 Step 2 Step 3 Step 4 Match the position

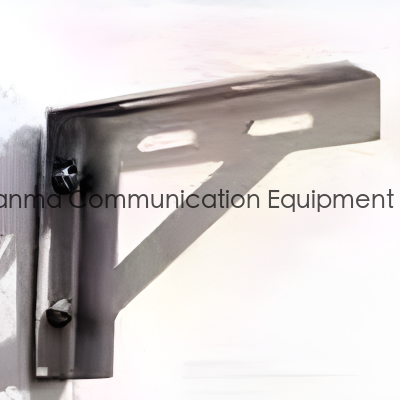

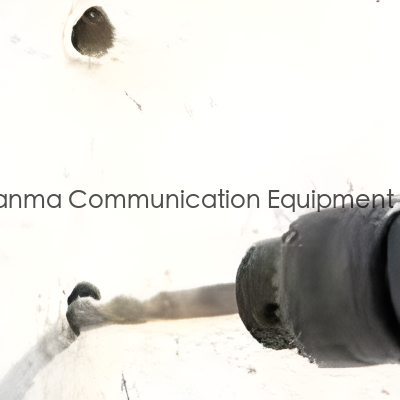

Use a drill to drill holesTighten the screws that align the support with the holes The pipe goes through the U-screw

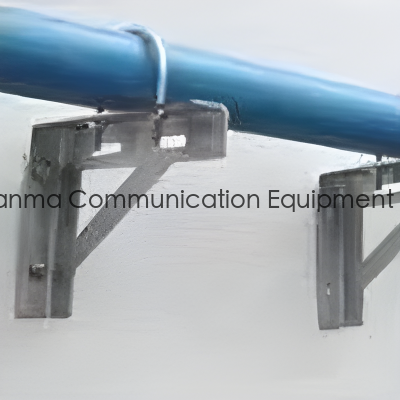

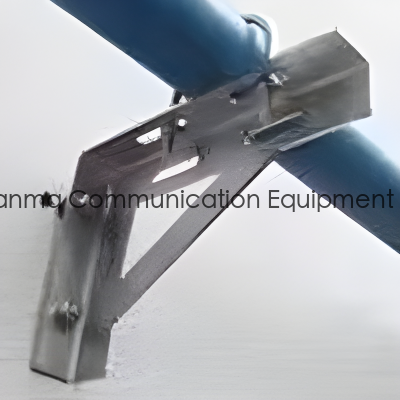

Fixed position is enoughInstallation complete
